Name: VelociRAX 412
Brand: VelociRAX
SKU: Rack_4_1
Price: 860.0 USD
Availability: InStock

$860.00

Shipping calculated at checkout.

In stock, ready to ship
Backordered, shipping soon

Orders ship out next business day

If choosing Local Pickup DO NOT USE Apple Pay as it defaults to shipping your order

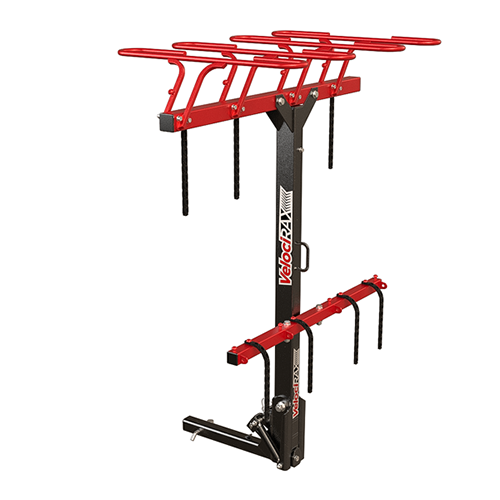

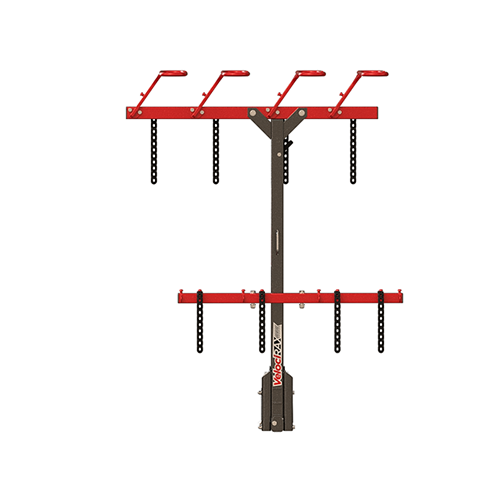

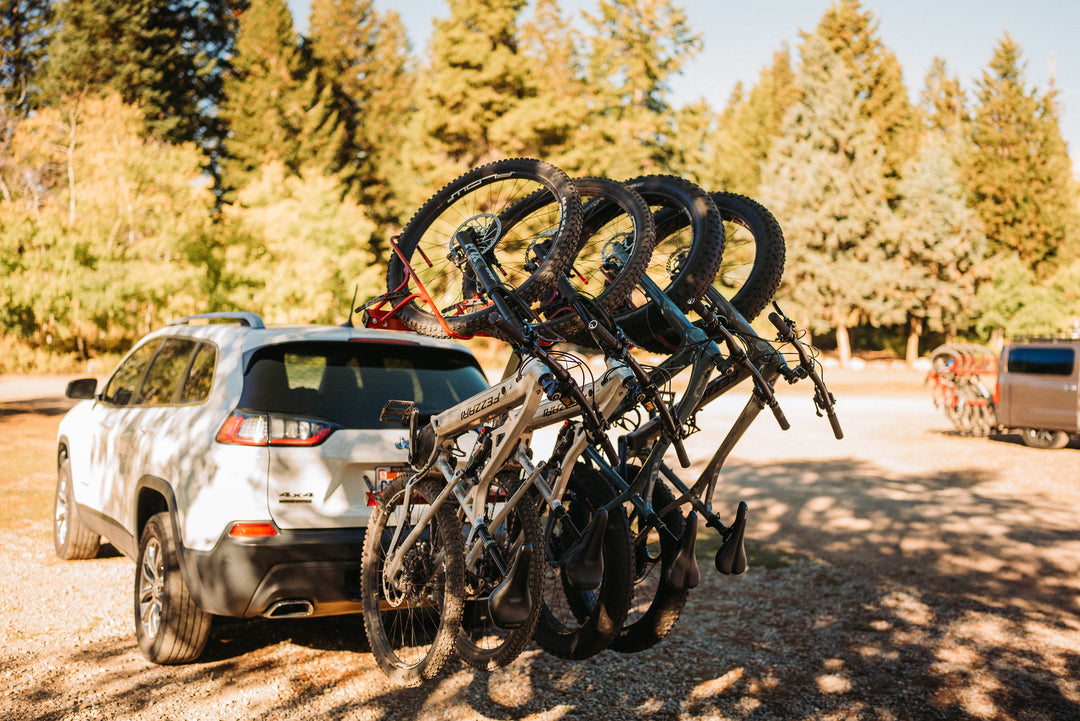

The VelociRAX 412 hitch-mounted vertical bike rack holds up to four bikes and has 12-inch spacing between tire baskets. This rack is ideal for small groups and can accommodate a range of bike builds, handlebar styles, and sizes. Load the VelociRAX 412 with your choice of bikes and let the rack do all the work so you can take bikes with you wherever you go. UV-tested rubber straps are included to quickly secure bikes in place while ONLY contacting the bike’s tires. A vertical hitch bike rack for four bikes is perfect for small families, spontaneous rides with friends, and road trips with a few other riders on board. If you are looking for a rack that is compact and can carry multiple bikes, look no further.

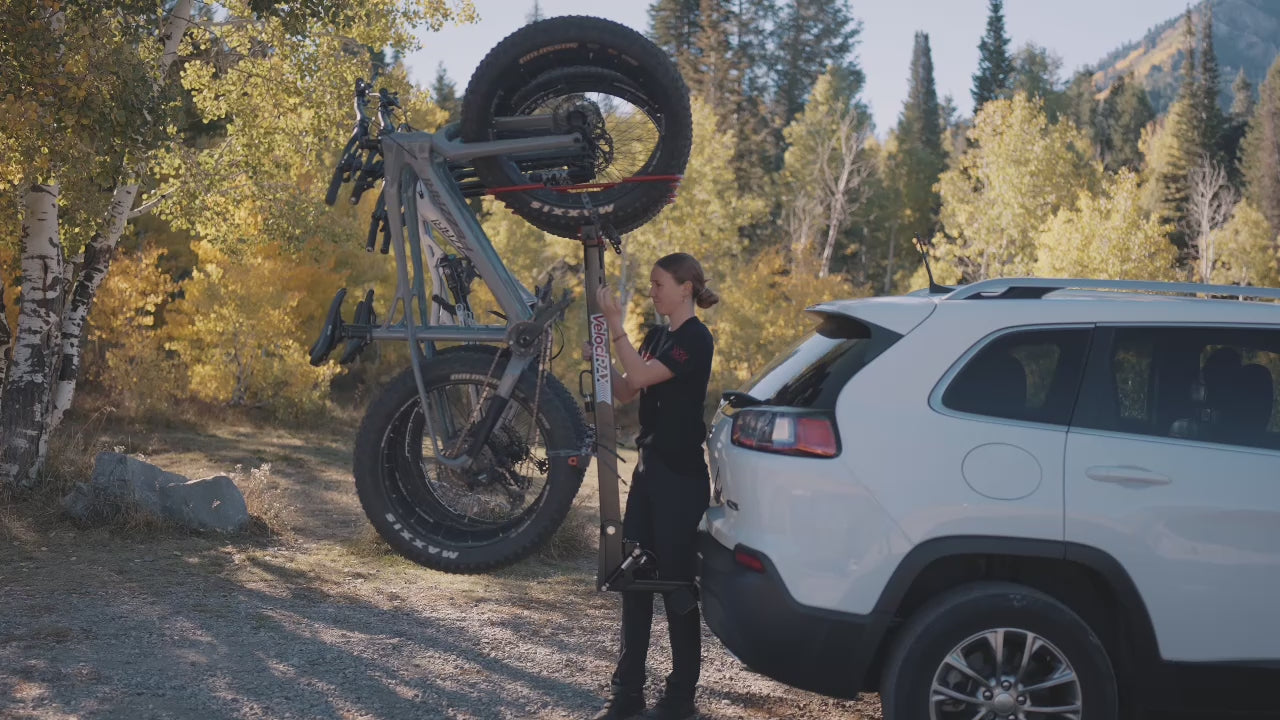

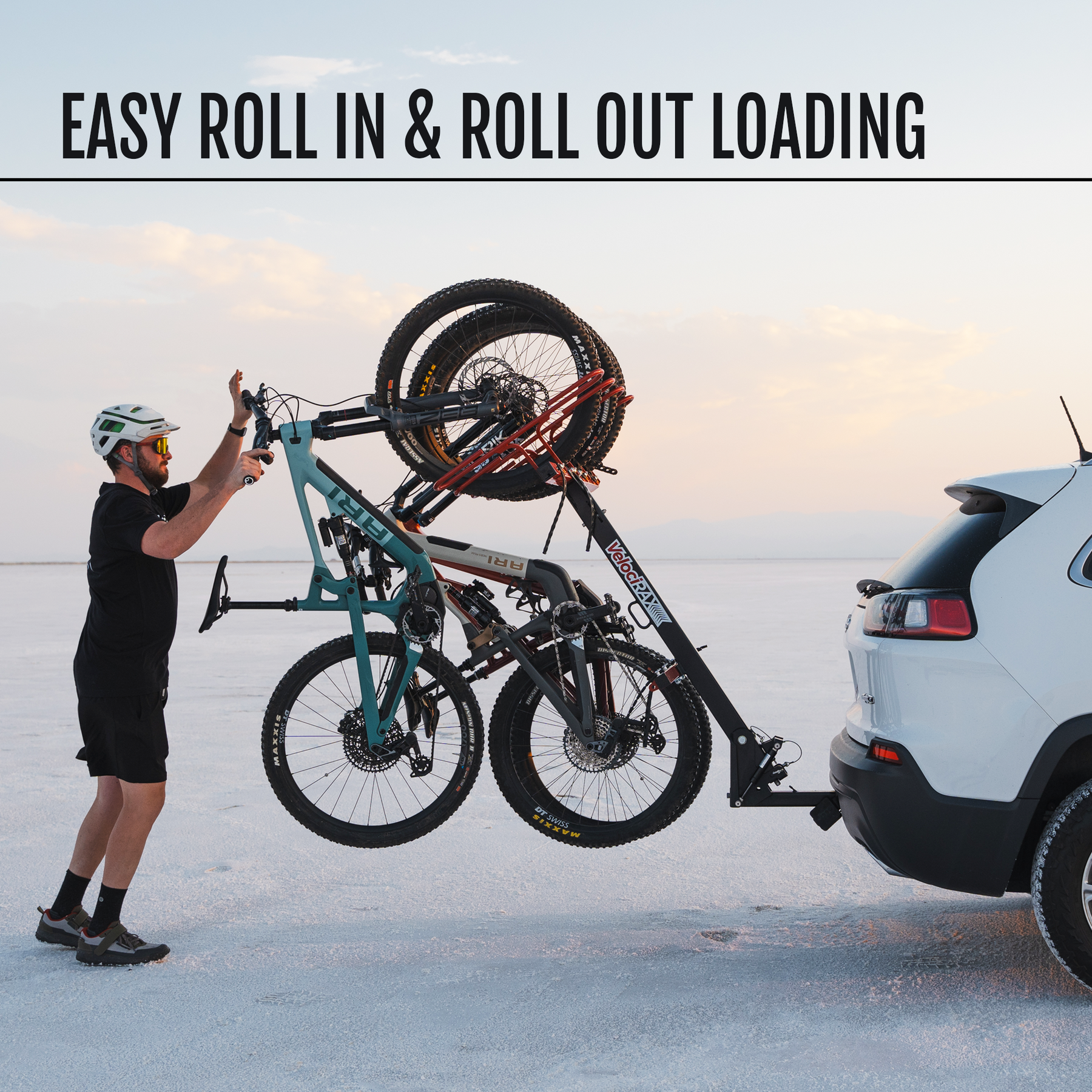

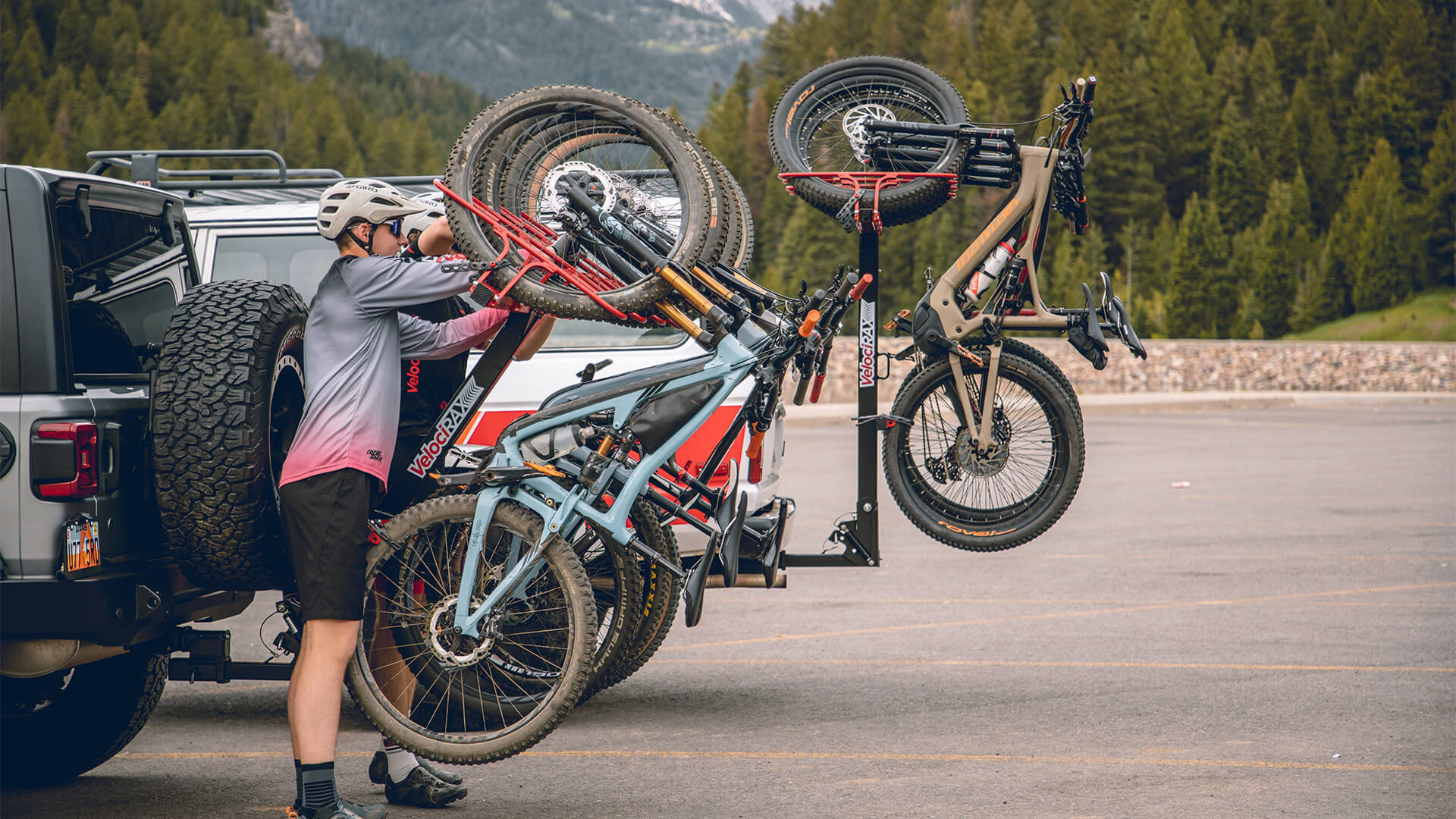

VelociRAX are patent pending with user-friendly features. There is no need to lift bikes onto this rack when using the roll-in and roll-out loading method, which means kids can load their bikes! Integrated hydraulic dampers assist fully loaded racks when lowering to the load position, so don’t worry about bikes crashing down when lowering this rack. All VelociRAX also come with a garage wall mount that can be used to store this rack with bikes when the rack is not on a vehicle.

*Bikes shown not included. But here's where you can pick up some great bikes from our friends at Ari.

- Hinge assist dampers for fully loaded hinging
- Garage wall mounting kit for Garage Mode
- Built-in anti-rattle mechanism
- Standard Tire Baskets - hold 20-29" wheels with tire widths from 700cc to 3.1"
- VelociRAX tire straps
- Rubber bands for brake lever engagement
- 1/2 inch hitch pin with keyed lock
- All needed hardware
- Assembly and Use Instructions
- US Pat. No. 11,554,724 & 11,572,022 and Patents Pending

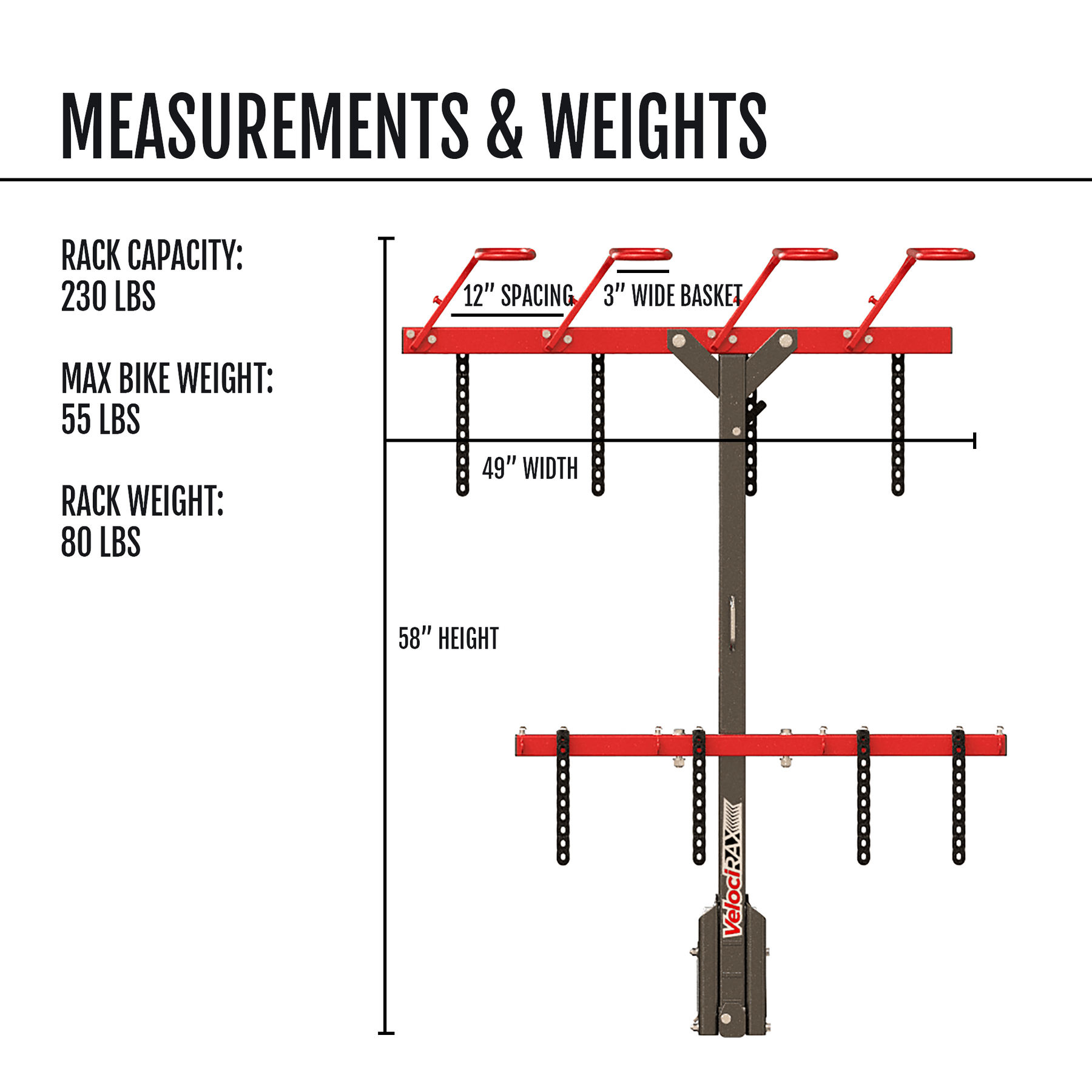

- 12-inch spacing between all bikes

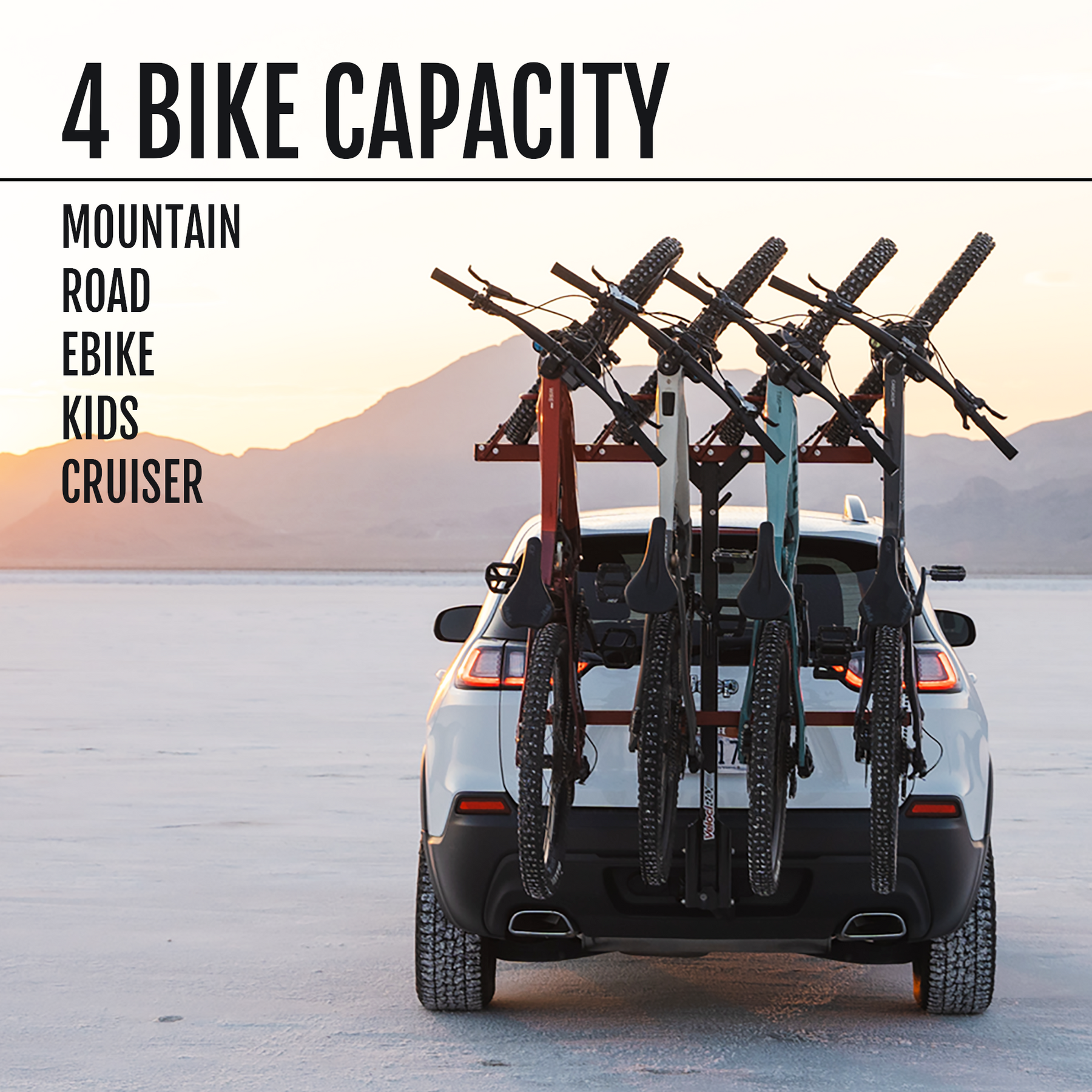

- Hitch mounted vertical bike rack holding up to 4 bikes
- Assembled width 49 inches
- Assembled height 58 inches
- Weight 80 lbs
- Load capacity 230 bike lbs at 55 lbs per bike max
- eBike ready: 4 standard ebikes (we recommend removing batteries if you are able)
- Ships in 3 boxes (1 - 47"x6"x6", 2 - 27"x13"x8", 3 - 58"x12"x7")
- Do not go through automated car washes with rack attached to vehicle

- 2" (50mm) Class III hitch with tongue capacity of 500 lbs
- 3 3/8 inch (86mm) depth past center of hitch pin hole to insert a VelociRAX
** Note - Check factory OEM hitch receivers on newer Subaru CrossTrek and Outback and Ford Ranger as they may lack sufficient depth on the factory hitch receiver.
- RVs/Trailers: you will need to have a Class III 2-inch hitch receiver with a tongue weight capacity of 500 lbs at a minimum (bumper hitches, extension hitches, and hitches with cantilevered sections allow too much hitch movement and are inadequate). One item to check is if a ladder could possibly interfere with the rack. Trailers and RVs produce extreme forces on racks and bikes. Take extra care to strap tight and use rubber bands (or bike tubes cut in ~1 inch sections) placed on the brake levers to decrease natural motion between bike and rack and fully secure the VelociRAX's built-in anti-rattle system.

Instructions for building your VelociRAX

PDF VIDEO

- Orders leave our warehouse next business day
- UPS Ground Delivery (No PO Boxes)
- Parts Ship USPS
- Local Pick Up available in Utah

VelociRAX Features

integrated locking system sliding door close up

Integrated Locking System 2.0

from $90.00

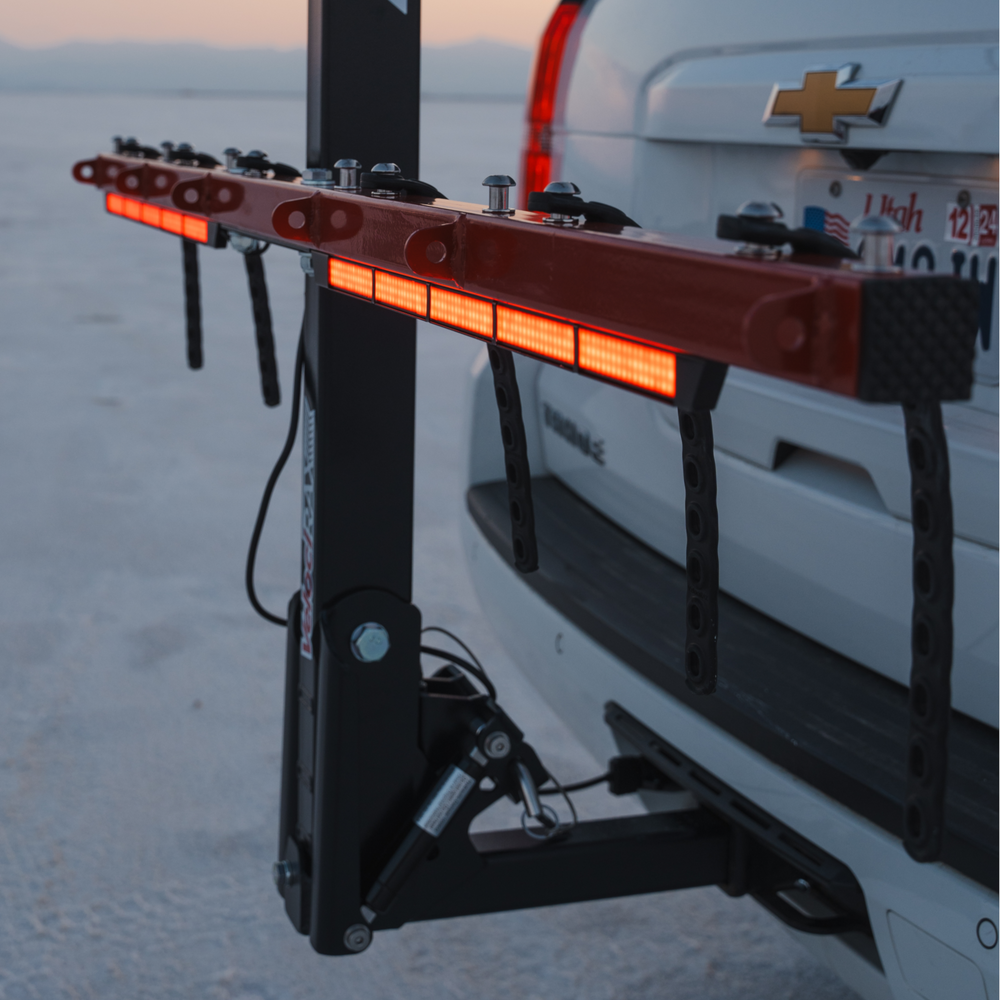

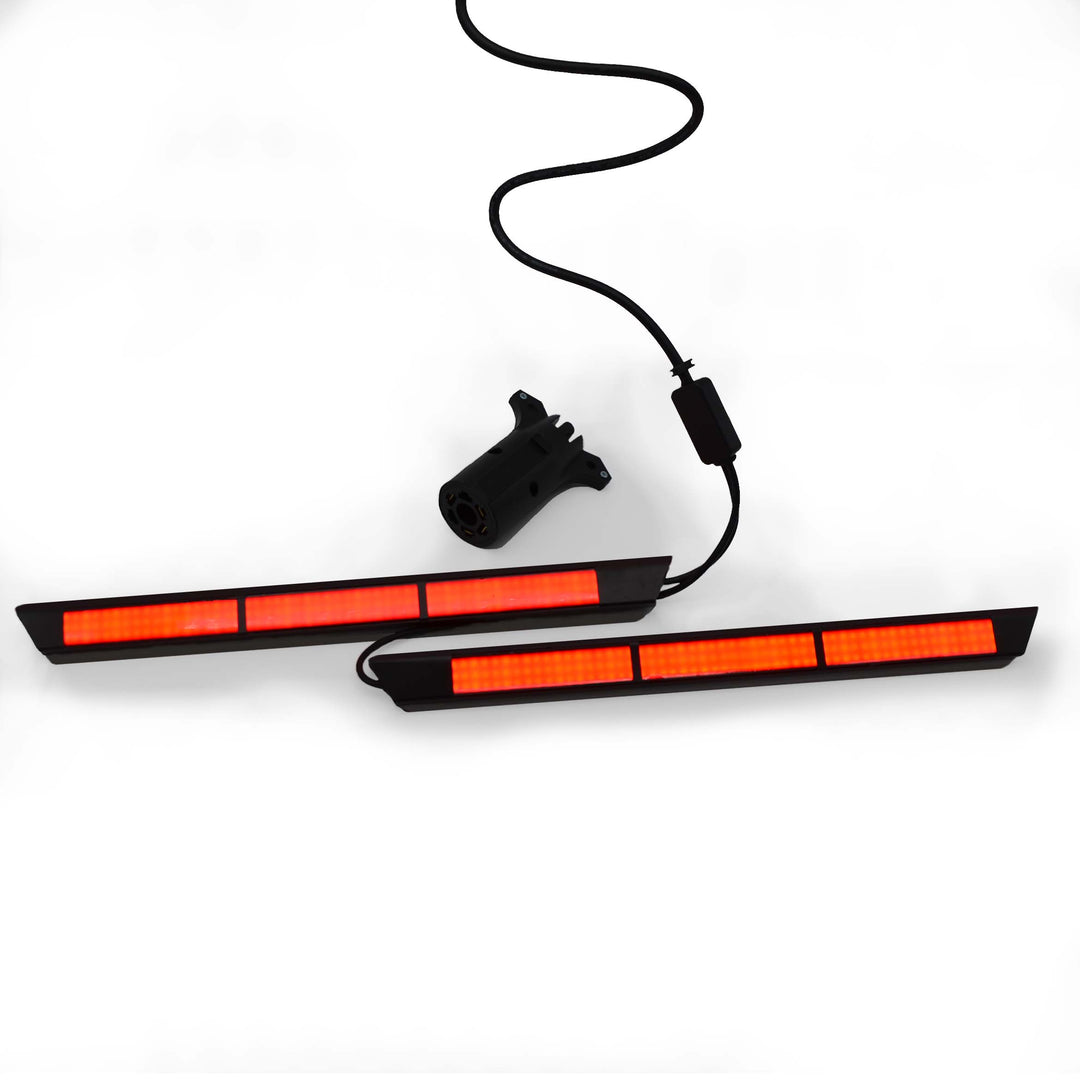

Light Bar

from $120.00

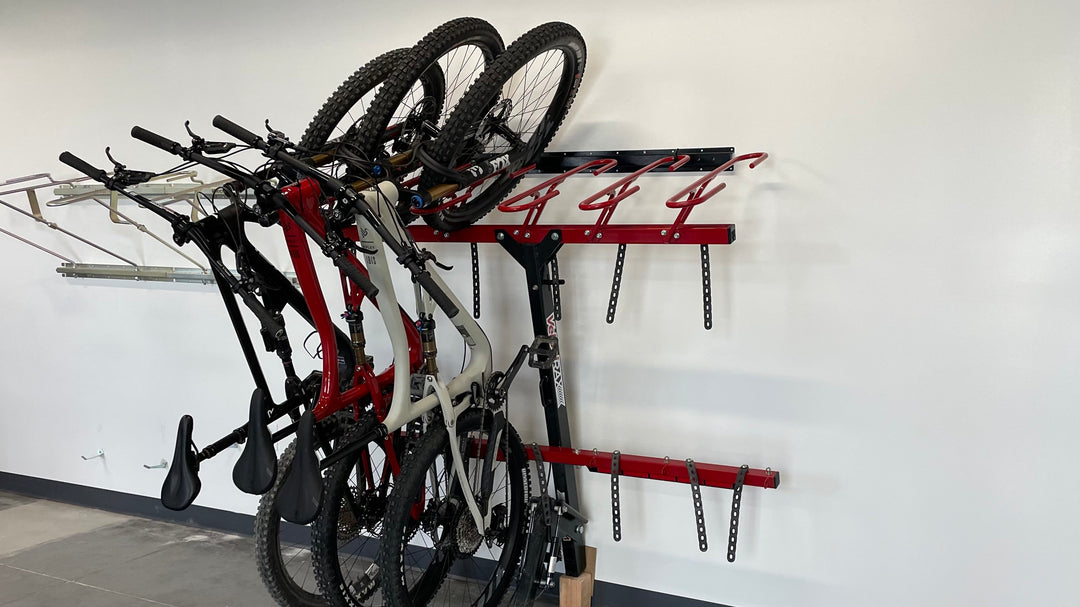

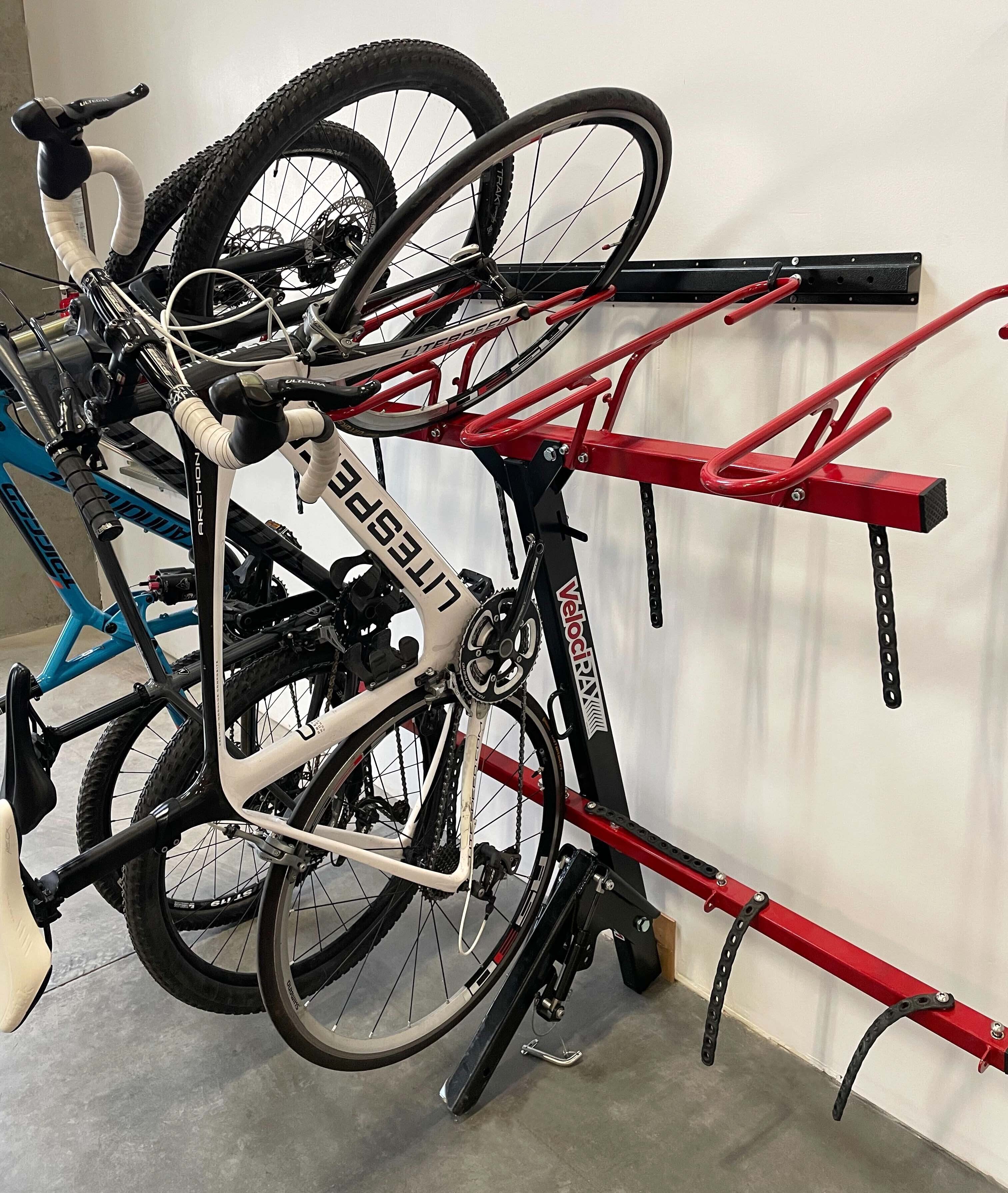

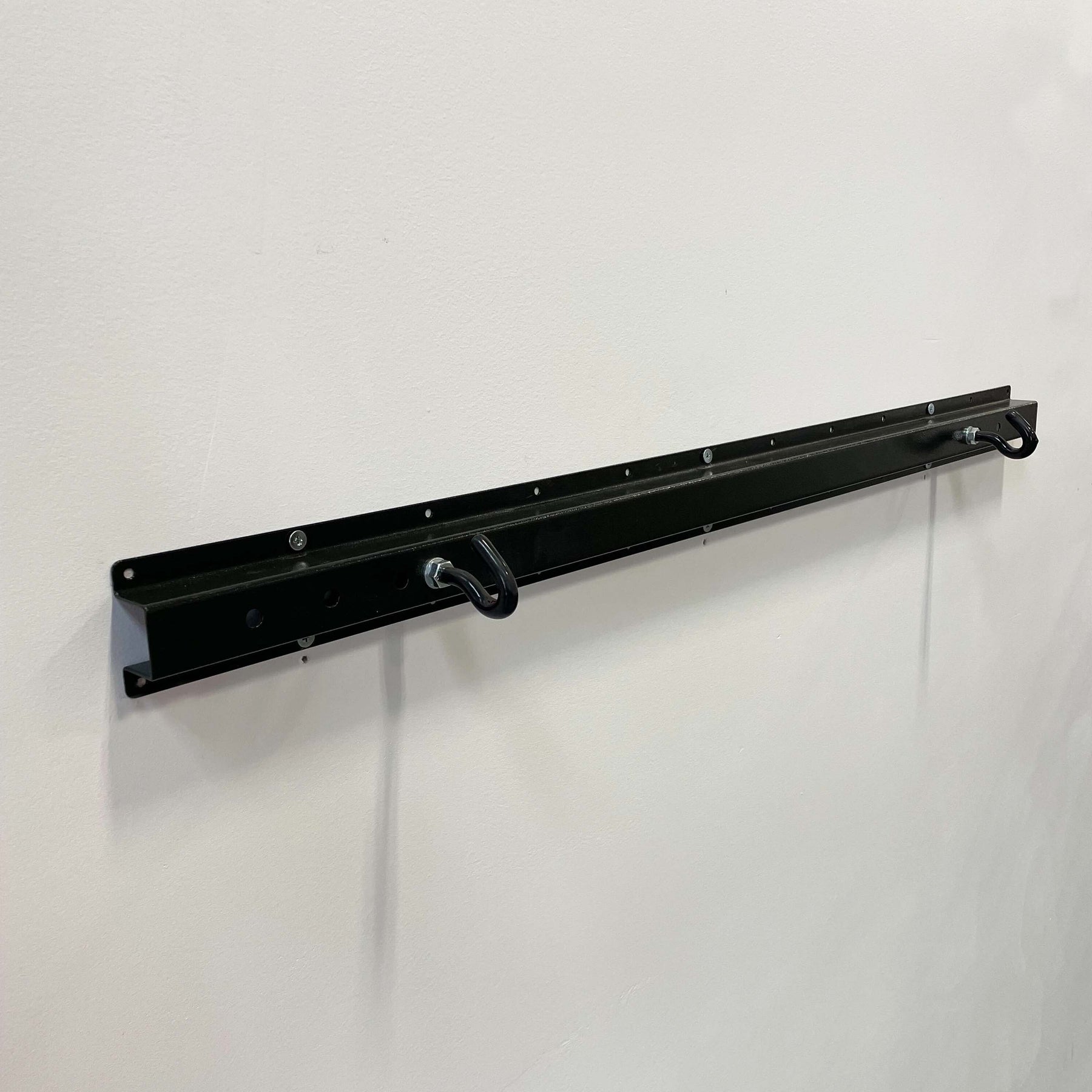

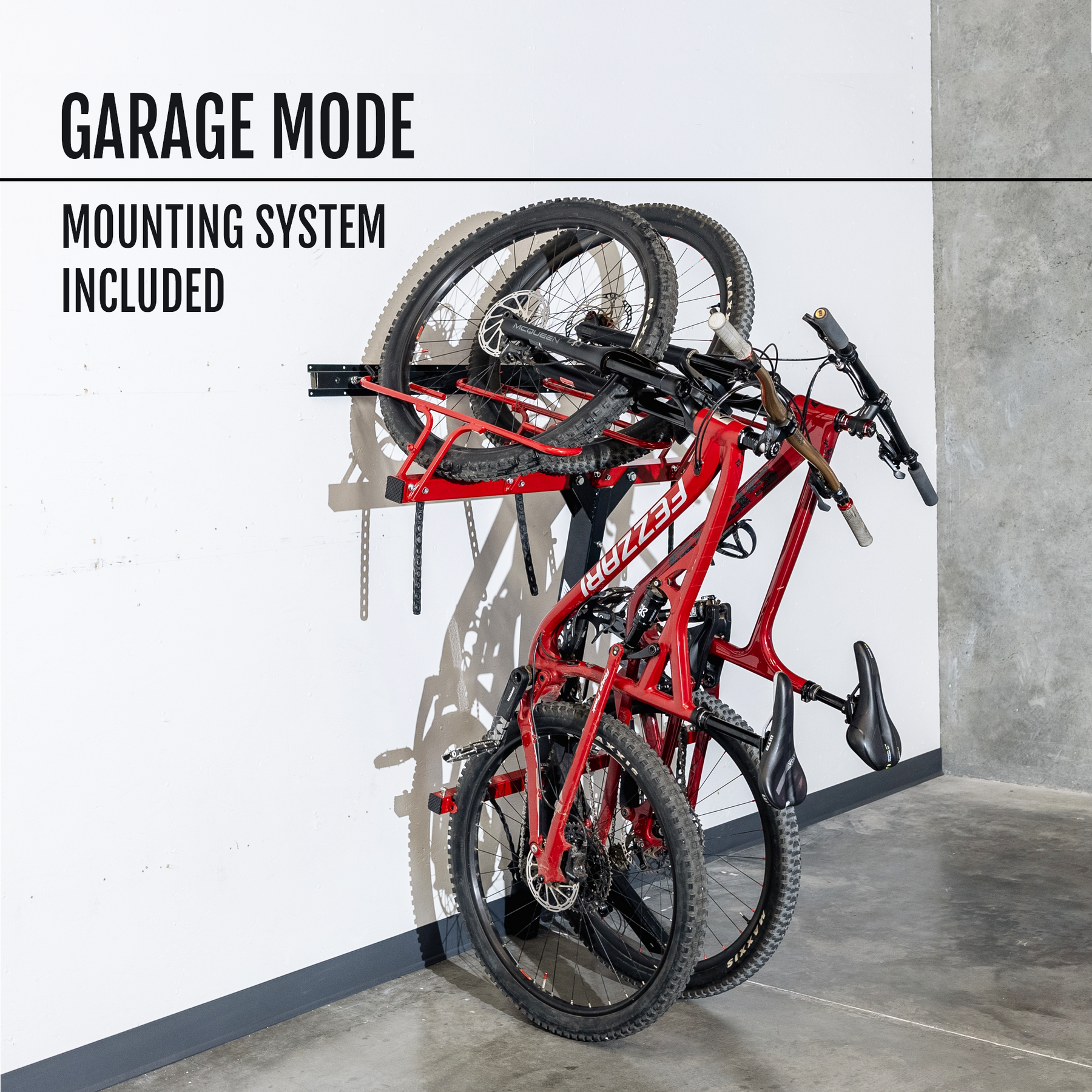

Garage Storage Capability

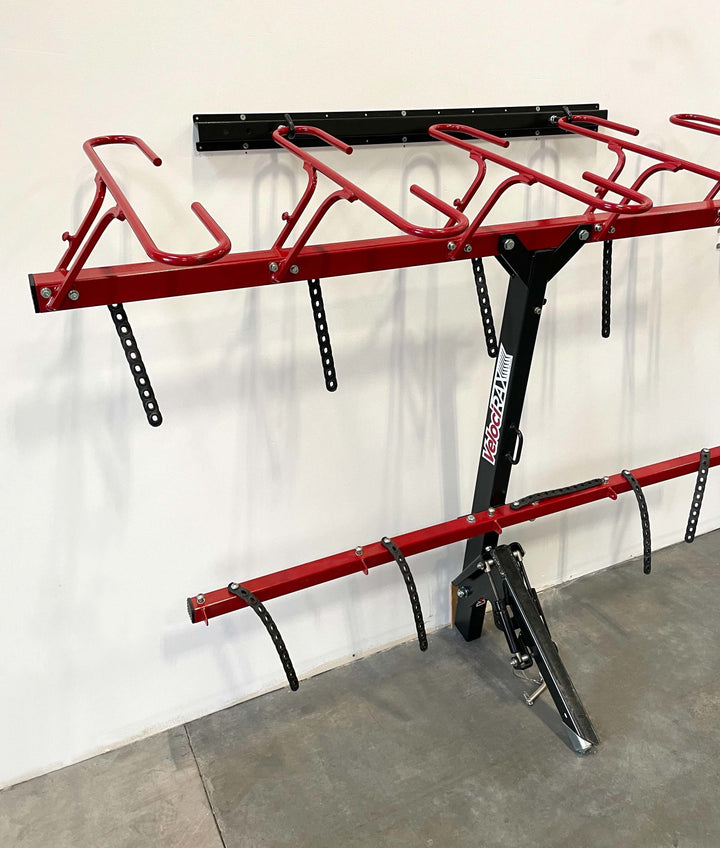

Each rack comes with a garage bracket which allows you to store your rack with bikes mounted.

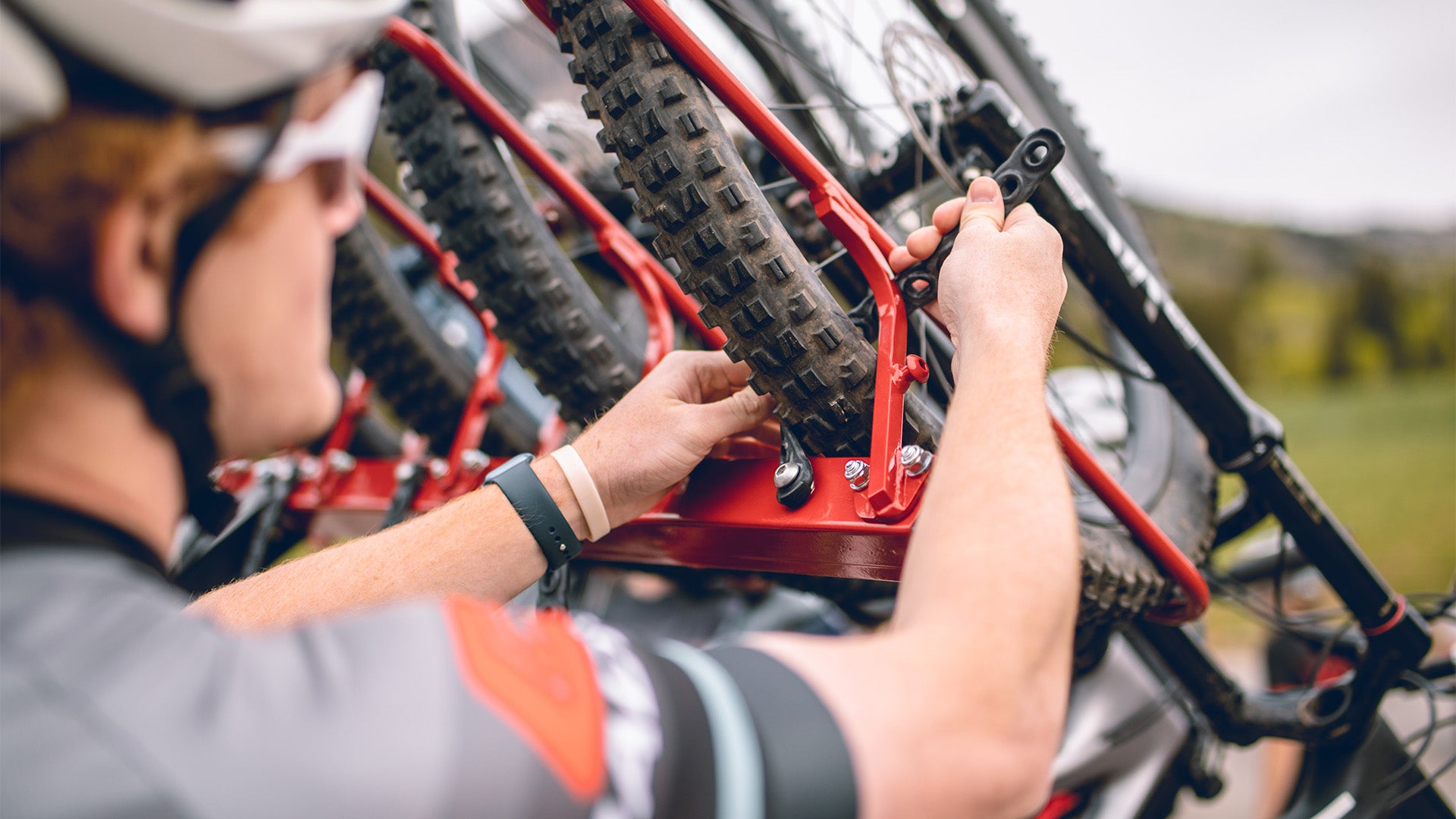

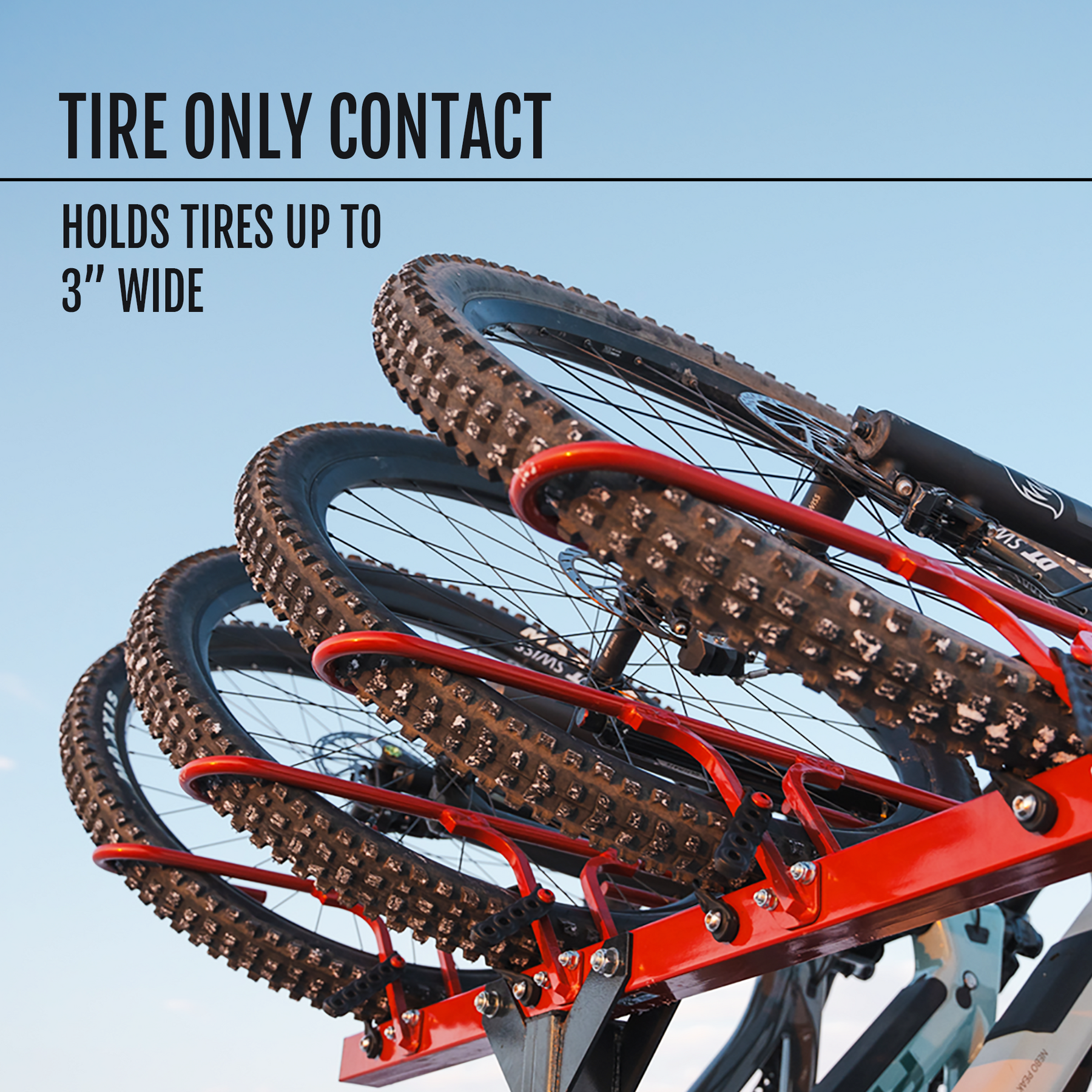

Rubber-only Contact

The only contact points on the bike are with the durable rubber straps and the bike tire, taking away any contact with metal or carbon fiber components.

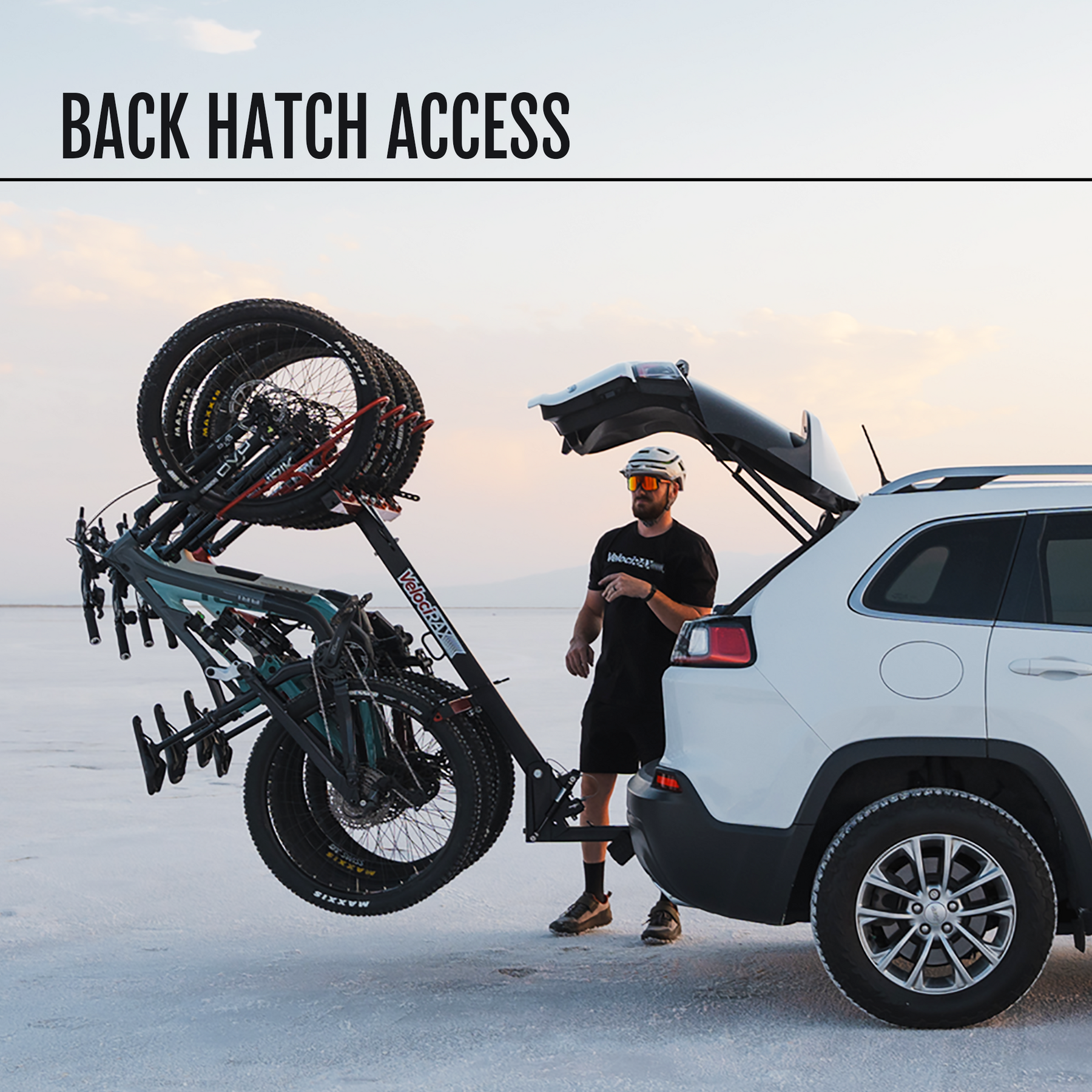

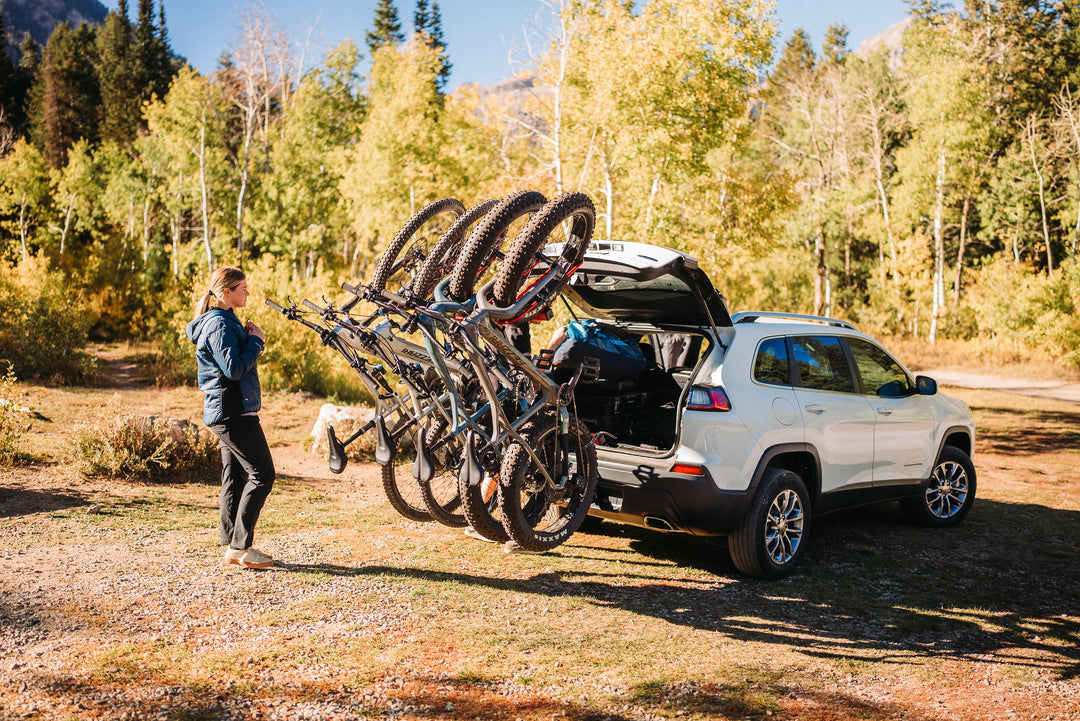

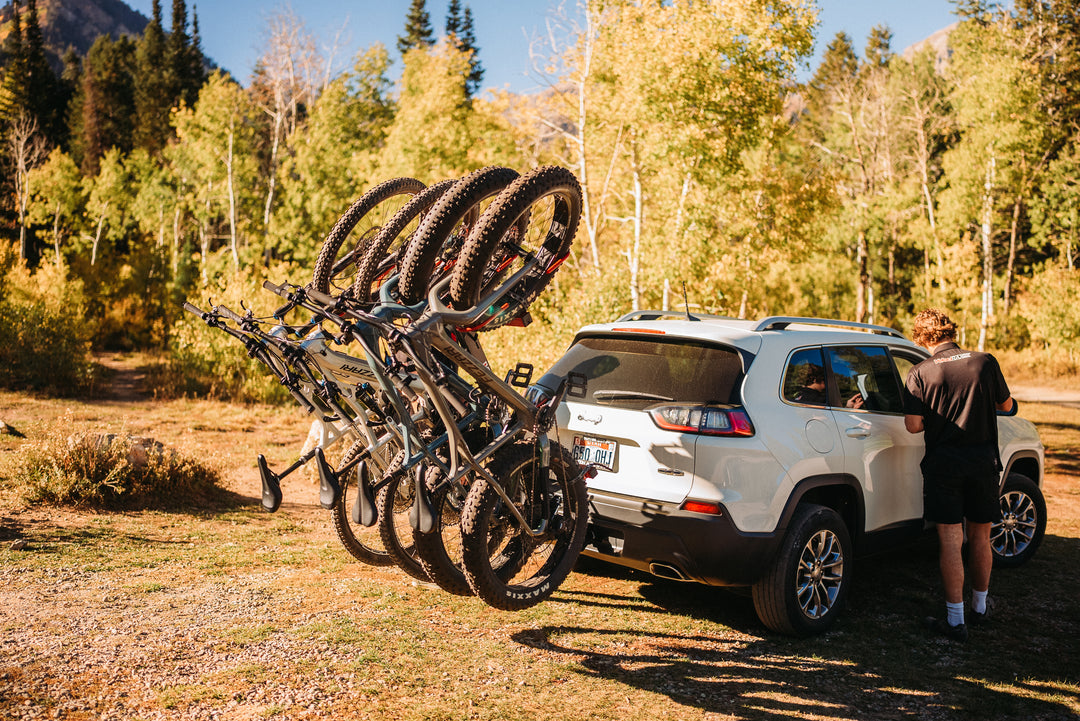

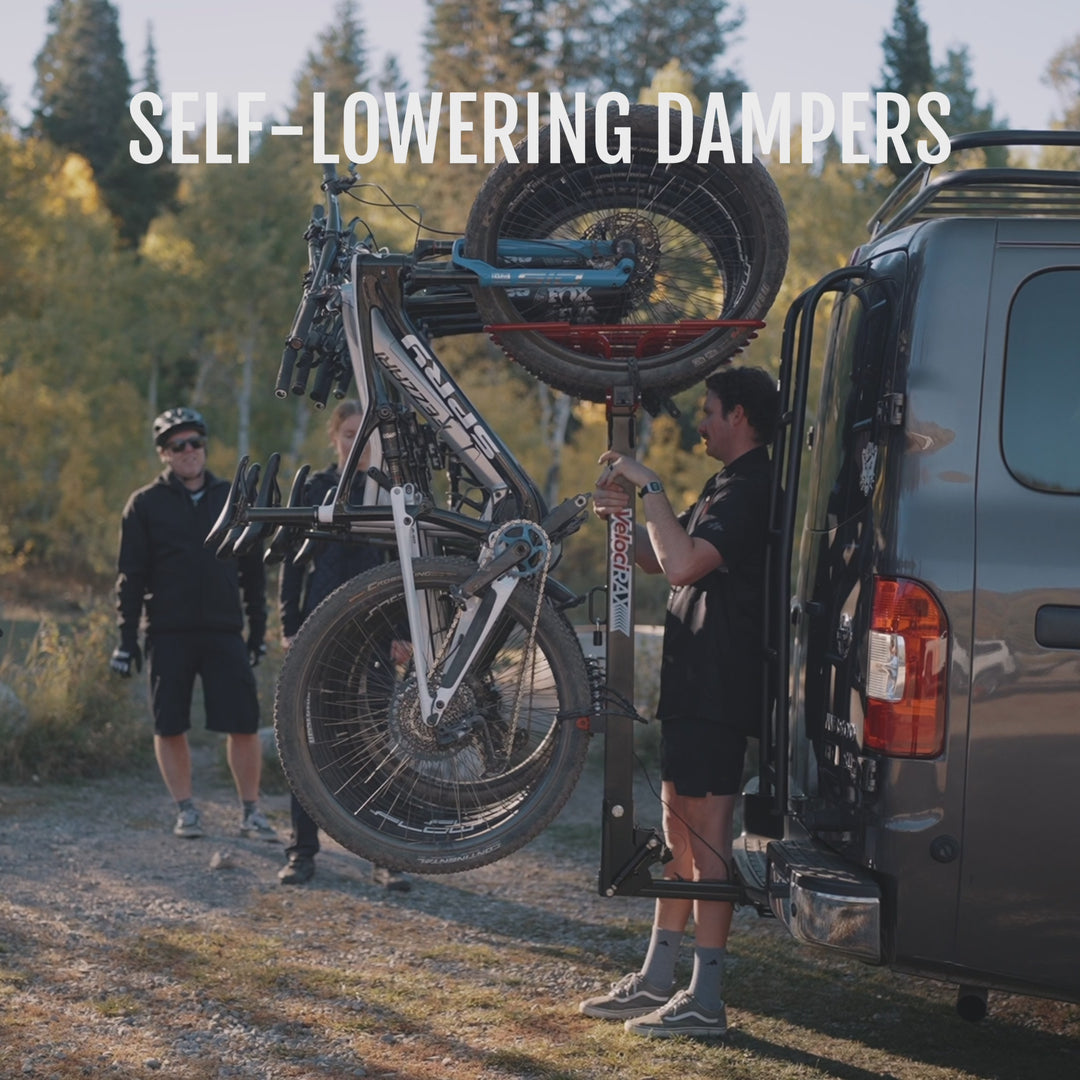

Integrated Hydraulic Dampers

Fully assisted lowering down to the loading position

Anti-rattle Capability

All of our racks are equipped with an anti-rattle mechanism that keeps the rack sturdy on your vehicle.
