Name: VelociRAX 5
Brand: VelociRAX
SKU: Rack_5_1
Price: 785.0 USD
Availability: InStock

$885.00 $785.00 Save $100.00

Shipping calculated at checkout.

In stock, ready to ship
Backordered, shipping soon

Orders ship out next business day

If choosing Local Pickup DO NOT USE Apple Pay as it defaults to shipping your order

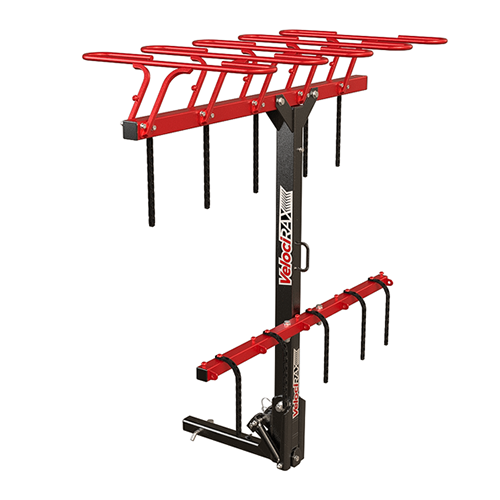

The VelociRAX 5 is a bike rack for hitches that holds up to five bikes and has 10-inch spacing between tire baskets. This rack size fits perfectly behind SUVs and can comfortably transport several bikes without exceeding the body of an SUV size car. This rack takes the stress out of loading a group of bikes, and kids can load bikes too! You can't beat a five-bike hitch rack the whole family can load that also leaves room to access the back of the car. Let your bike rack do the work so you can enjoy the ride! VelociRAX are patent pending with user-friendly features.

There is no need to lift bikes onto this rack when using the roll-in and roll-out loading method, which means kids can load their bikes! Integrated hydraulic dampers assist fully loaded racks when lowering to the load position, so don’t worry about bikes crashing down when lowering this rack. All VelociRAX also come with a garage wall mount that can be used to store this rack with bikes when the rack is not on a vehicle.

You can fully load this rack with flat handlebar bikes (like mountain bikes), but a drop handlebar bike (like a road bike) can fit on the far end if desired.

- Hinge assist dampers for fully loaded hinging
- Garage wall mounting kit for Garage Mode
- Built-in anti-rattle mechanism
- Standard Tire Baskets - hold 20-29" wheels with tire widths from 700cc to 3.1"
- VelociRAX tire straps
- Rubber bands for brake lever engagement
- 1/2 inch hitch pin with keyed lock
- All needed hardware
- Assembly and Use Instructions
- US Pat. No. 11,554,724 & 11,572,022 and Patents Pending

- 10-inch spacing between bikes
- Hitch mounted vertical bike rack holding up to 5 bikes
- Assembled width 53 inches
- Assembled height 58 inches
- Weight 89 lbs
- Load capacity 230 bike lbs at 55 lbs per bike max
- eBike ready: 4 standard ebikes (we recommend removing batteries if you are able)
- Ships in 3 boxes (1 - 50"x6"x6", 2 - 27"x13"x9", 3 - 58"x12"x7")
- Do not go through automated car washes with rack attached to vehicle

- 2" (50mm) Class III hitch with tongue capacity of 500 lbs
- 3 3/8 inch (86mm) depth past center of hitch pin hole to insert a VelociRAX
** Note - Check factory OEM hitch receivers on newer Subaru CrossTrek and Outback and Ford Ranger as they may lack sufficient depth on the factory hitch receiver.
- RVs/Trailers: you will need to have a Class III 2-inch hitch receiver with a tongue weight capacity of 500 lbs at a minimum (bumper hitches, extension hitches, and hitches with cantilevered sections allow too much hitch movement and are inadequate). One item to check is if a ladder could possibly interfere with the rack. Trailers and RVs produce extreme forces on racks and bikes. Take extra care to strap tight and use rubber bands (or bike tubes cut in ~1 inch sections) placed on the brake levers to decrease natural motion between bike and rack and fully secure the VelociRAX's built-in anti-rattle system.

Instructions for building your VelociRAX

PDF VIDEO

- Orders leave our warehouse next business day
- UPS Ground Delivery (No PO Boxes)
- Parts Ship USPS
- Local Pick Up available in Utah

VelociRAX Features

Sale

integrated locking system sliding door close up

Integrated Locking System 2.0

$90.00 from $76.50 Save $13.50

Sale

Light Bar

$120.00 from $102.00 Save $18.00

Garage Storage Capability

Each rack comes with a garage bracket which allows you to store your rack with bikes mounted.

Rubber-only Contact

The only contact points on the bike are with the durable rubber straps and the bike tire, taking away any contact with metal or carbon fiber components.

Integrated Hydraulic Dampers

Fully assisted lowering down to the loading position

Anti-rattle Capability

All of our racks are equipped with an anti-rattle mechanism that keeps the rack sturdy on your vehicle.
